A Comprehensive Chronicle of the ST-46YTC CNC Lathe Project – From Client Vision to Shipment Perfection
Client’s requirement: The client provides detailed requirements for the workpiece and machine.
1. Workpiece drawing.
2. Automatic requirement.
Material feed in, finished part feed out.
Handling of oil mist.
3. Extend the range for machining different workpieces.
The long workpiece, the workpiece with angled holes, high accuracy, etc.
Evaluation and suggestion from Smartlathe.
After evaluation, we offer a detailed solution to the client.
CNC model: ST-46YTC
With below configuration so that to fully match client’s requirement.
15 Stations Power Turret
with Y-axis

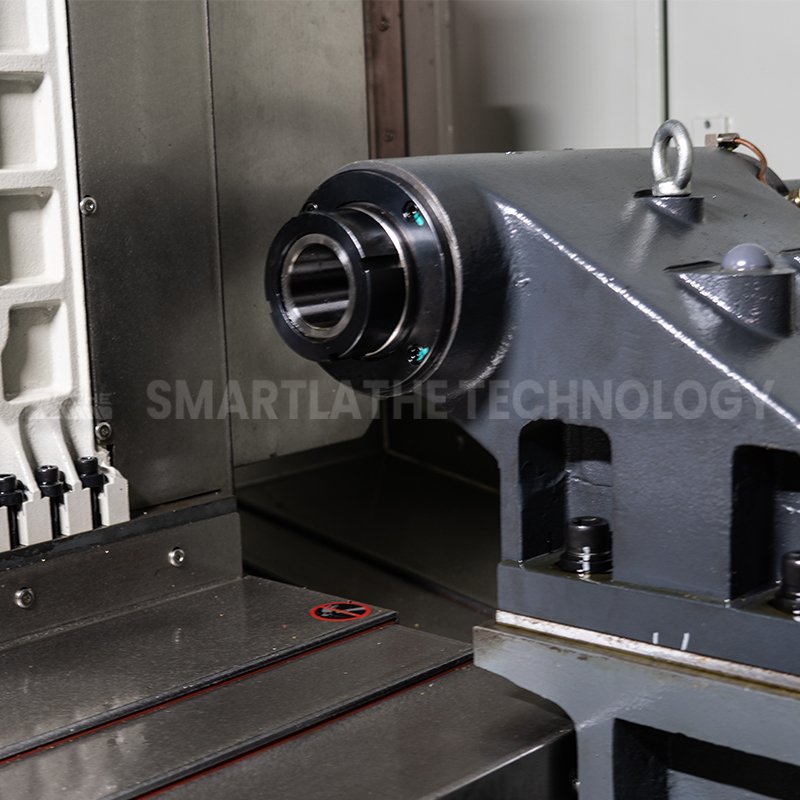

Tailstock
Oil Mist Collector
Chain Chip Conveyor
Angle Adjustable
Living Tool
Part Catcher
Oil Skimmer
High Speed (Max. 8000rpm)
Living Tool
Fanuc System
Servo Bar Feeder
Sample Demo: After completing the machine, we proceed with a sample demo based on the client’s drawing.
1. Sample Processing
Run the machine and process the sample
Take video recordings of the whole machining process
2. Sample Review
Dimensions and appearance
Client Review & Acceptance.
The client reviews the images, videos, and sample demo results, and then provides confirmation.
Packing of Machine & Exiting Factory
1. The machine to be packed into the wooden box. We design the best packing layout so that to be safe for transportation and to be space-saving.
2. Load into the Chuck and Exit Factory
