Smart CNC Lathe

ST-Series

ST Series is an integrated multiplex turning center that combines the processing capabilities of a turning center with those of a machining center via Y and C axis control. The versatile 12-station power turret allows it to completely manufacture parts with complex shapes in a single setup operation.

The launch of the ST Series is the pursuit of the maximum potential of flexibility, accuracy, reliability, and productivity.

Techical Data

Model

ST-46YT

ST-52YT

ST-72YT

CAPACITY

Swing Over Cross Bed

Φ500 mm

Φ500 mm

Φ500 mm

Turning Length

Up to 300mm

Up to 500mm

Up to 520mm

Bar Materials Turning Diameter(Max.)

Φ45mm

Φ51mm

Φ71mm

Single Workpiece Turning Diameter(Max.)

200mm

300mm

300mm

Bed Type

Slant Bed

Slant Bed

Slant Bed

TRAVELS

Z Axis

400mm

550mm

550mm

X Axis

300mm

400mm

400mm

Y Axis

±35mm

±40mm

±40mm

Ball Screw Rod

25&40mm

40mm

40mm

Linear Guideway

30&35mm

45mm

45mm

Z/X Axis

Up to 30m/min

Up to 30m/min

Up to 30m/min

Machining Accuracy

±0.005mm

±0.005mm

±0.005mm

Surface roughness

≤Ra 1.6μm

≤Ra 1.6μm

≤Ra 1.6μm

SPINDLE

Spindle Nose Taper

A2-5

A2-6

A2-8

Speed

5000rpm

4000rpm

3000rpm

Spindle Motor Power

7.5KW

11KW

15KW

Collet Type

3-Jaw Hydraulic Chuck With Soft Jaws

Chuck Size

6''

8''

10''

TOOLS

Power Turret

BMT40 15 stations

BMT55 12 stations

BMT55 12 stations

Tool holder

Inner Hole Tool Holders (3 Sets)

Outer Circular Tool Holders (4 Sets)

Facing Tool Holder (1 Set)

Side Milling Tool Holders (2 Sets)

Face Milling Tool Holders (2 Sets)

Tailstock Type

MT5

MT5

MT5

Tailstock Travel

300mm

500mm

500mm

CNC CONTROL

Controller

SYNTEC

SYNTEC

SYNTEC

POWER SUPPLY

Total Power

18.5kW

25kW

30kW

Voltage

AC 380V 50Hz

AC 380V 50Hz

AC 380V 50Hz

DIMENSIONS

Dimensions (L/W/H)

2500*1800*2000mm

2800*2200*2000mm

2800*2200*2000mm

Weight

3500kg

5600kg

5600kg
Features

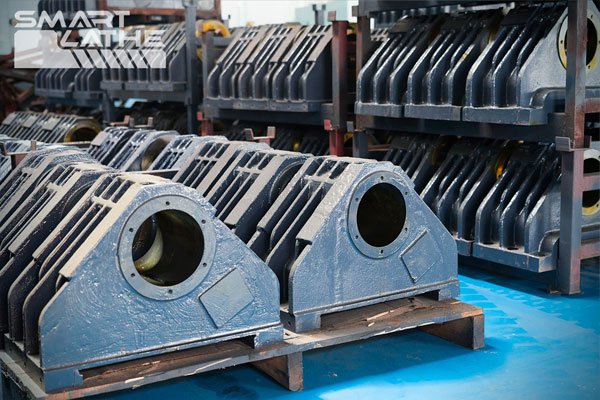

  • One-piece cast iron foundation is a true 30-degree slant bed casting, providing large mass in a small footprint. More mass means higher rigidity and better heat dissipation.

  • The patented slant bed design increases the X-axis travel to 220mm, Y-axis travel to 40mm and Z-axis to 350mm reducing the lathe size and stability.

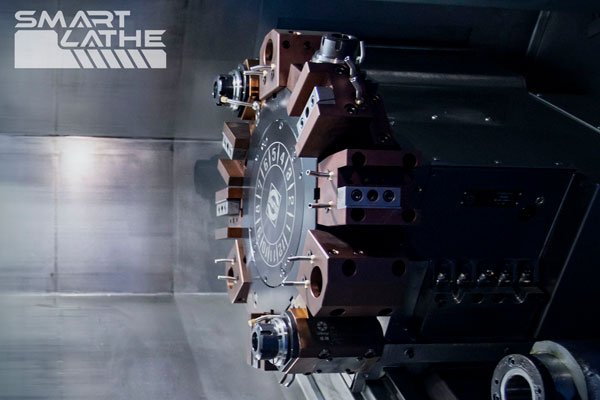

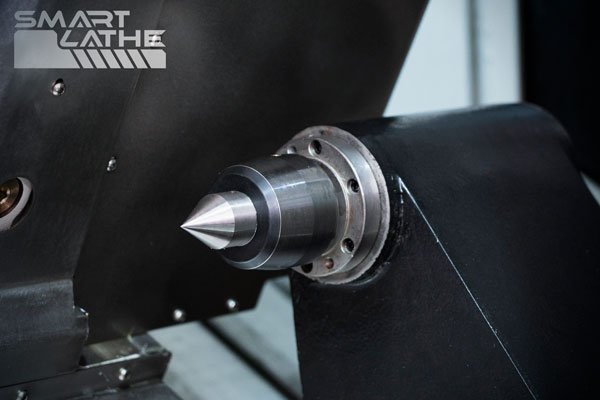

  • Equipped with a CNC program-controlled hydraulic tailstock, a 12-station power turret, a power milling head can be installed at the upper or bottom position of the Y-axis (turret), high rigidity cutting, suitable for long-axis turning, milling, Processing of complex multi-process products such as drilling and tapping.

  • The main spindle is with C-axis function, high speed, high precision, and low vibration which can make the workpiece precise. Each spindle bearing assembly was tested for dynamic balance before installation to ensure high-speed running stability.

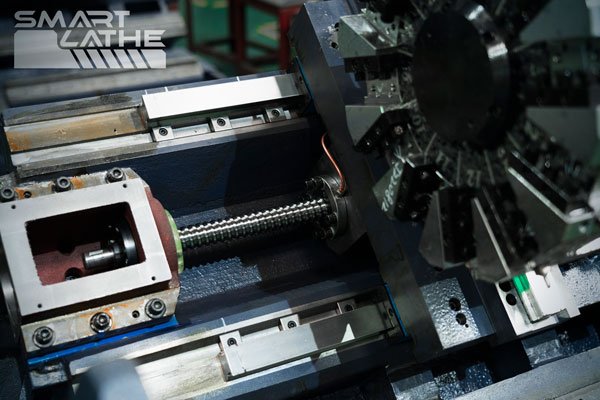

  • Equips with Taiwan ball screw rod rail and linear guideway to provide precision and low vibration tool carriage movement.

  • Equips with auto lubrication system to ensure transmission system smoothly and long-lived.

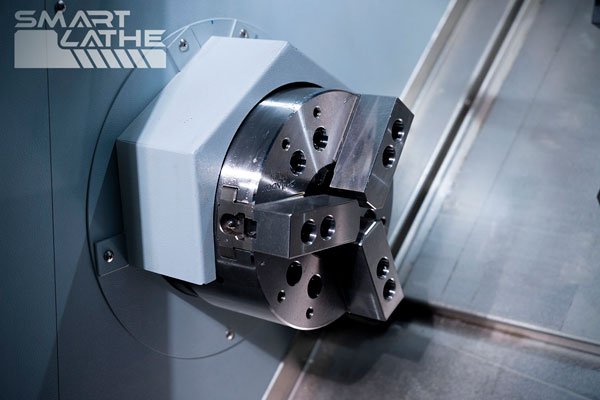

  • A robust hydraulic collet chuck can hold bars up to φ51mm and a single workpiece up to φ62mm.

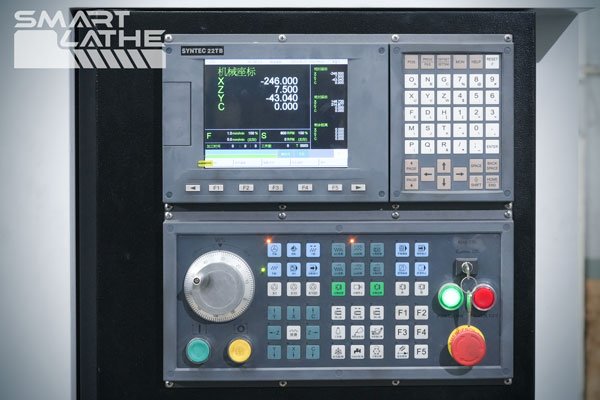

  • SYNTEC CNC system co-works with quality electrical parts providing a rapid-operation and durable use.
Optional

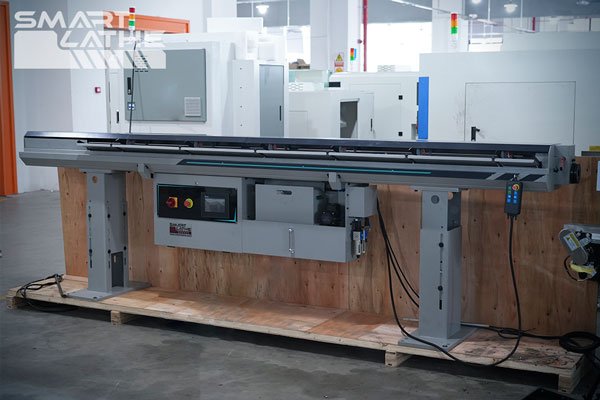

Auto Bar Feeder

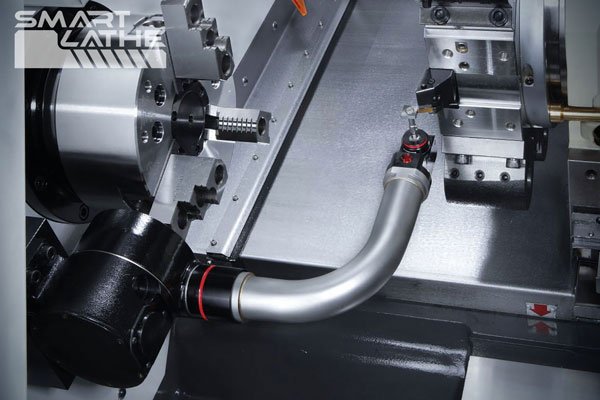

Auto Tools Setter

Part Catcher

Oil Mist Collector

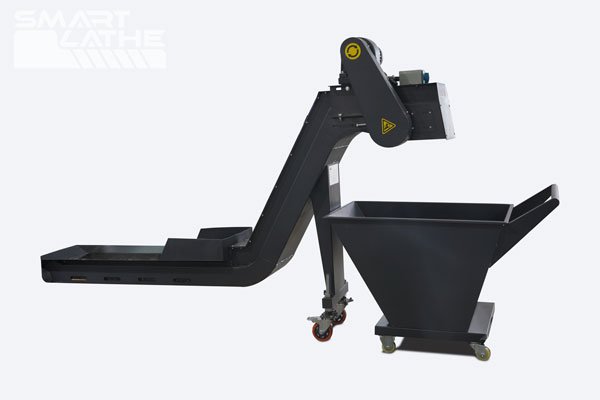

Chain Chip Conveyor

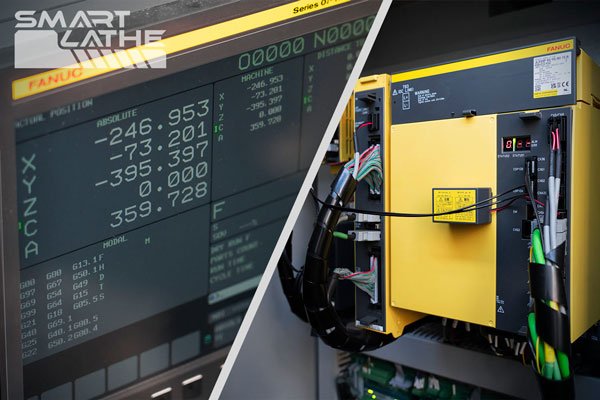

Fanuc CNC System

Application

Competent to handle the turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameter up to Φ51 mm or single workpieces up to Φ300mm. High Rigidity casting iron body provides the possibility of higher hardness materials and better smoothness (smaller roughness). ST-52YT is equipped with a CNC program-controlled hydraulic tailstock, a 12-station power turret, a power milling head that can be installed at the upper or bottom position of the Y-axis (turret), high rigidity cutting, suitable for long-axis turning, milling, Processing of complex multi-process products such as drilling and tapping.

ST-52Y-power-turret-cnc-lathe-Application

Case Study

Configuration: ST-52YT installs the 3-Jaw Hydraulic Chuck, Power turret.

Workpiece: Connection shaft, 45 steel.

Machining Process: Turning, Facing, Drilling, Milling.

Turning Duration: within 380 seconds of one-time processing

ST-52Y-power-turret-cnc-lathe-case-study
