CNC lathe chuck types
CNC lathe is a type of high-precision, high-efficiency automated machining equipment. There are various types of chucks used on its spindle, which can be categorized based on their clamping methods and structural characteristics. The following are types of chucks commonly used on CNC lathes:
1. Three-jaw chuck:
The three-jaw chuck is one of the most common types, often used for clamping circular workpieces. It achieves clamping and releasing of workpieces by evenly distributing three jaws around the circumference. Its advantages include uniform clamping force and easy operation, suitable for most lathe machining tasks.
|
Model |
Nose type |
A |
B |
C(h6) |
D |
E |
F |
G |
H |
J |
K |
L |
M |
|
3K05 |
A2-4 |
135 |
72 |
110 |
63.513 |
15 |
4 |
96 |
82.55 |
33 |
3-M10 |
13 |
14 |
|
3K06 |
A2-5 |
169 |
91 |
140 |
82.563 |
15 |
5 |
116 |
104.8 |
46 |
6-M10 |
16 |
20 |
|
3K08 |
A2-6 |
210 |
103 |
170 |
106.375 |
17 |
5 |
150 |
133.4 |
52 |
6-M12 |
18 |
25 |
|
3K10A06 |
A2-6 |
254 |
120 |
220 |
106.375 |
25 |
5 |
171.4 |
133.4 |
77 |
6-M16 |
18.5 |
30 |
|
3K10A08 |
A2-8 |
254 |
113 |
220 |
139.375 |
18 |
5 |
190 |
171.4 |
77 |
6-M16 |
24 |
30 |
|
Model |
N(Max.) |
N(Min.) |
O(Max.) |
O(Min.) |
P(Max.) |
P(Min.) |
Q |
R |
S |
T |
U(Max.) |
V |
W |
X |
|
3K05 |
26.5 |
23.8 |
19.75 |
7.75 |
17 |
7 |
25 |
10 |
20 |
2 |
M40X1.5P |
3XM6 |
31.5 |
62 |
|
3K06 |
32 |
29.25 |
22.75 |
9.25 |
26 |
14 |
31 |
12 |
19 |
2 |
M55X2 |
3XM6 |
37.5 |
73 |
|
3K08 |
38.7 |
35 |
29.75 |
14.75 |
31.5 |
15.5 |
35 |
14 |
20.5 |
2 |
M60X2 |
6XM6 |
39 |
95 |
|
3K10A06 |
51 |
46.6 |
33.75 |
14.25 |
33.5 |
14.5 |
40 |
16 |
25 |
2 |
M85X2 |
6XM12 |
43 |
110 |
|
3K10A08 |
51 |
46.6 |
33.75 |
14.25 |
26.5 |
7.5 |
40 |
16 |
25 |
2 |
M85X2 |
6XM8 |
43 |
110 |
|
Model |
Grip Dia. |
Jaw stroke |
Plunger stroke |
Max. pull force(KN) |
Max. gripping force(KN) |
Max. speed(rpm) |
Weight(kg) |
|
3K05 |
12-135 |
5.4 |
10 |
1784 |
3671 |
7000 |
6.7 |
|
3K06 |
15-169 |
5.5 |
12 |
2243 |
5812 |
6000 |
13.7 |
|
3K08 |
13-210 |
7.4 |
16 |
3549 |
8769 |
5000 |
23.6 |
|
3K10A06 |
31-254 |
8.8 |
19 |
4385 |
11319 |
4200 |
41.5 |
|
3K10A08 |
34-254 |
8.8 |
19 |
4385 |
14684 |
4200 |
40.0 |

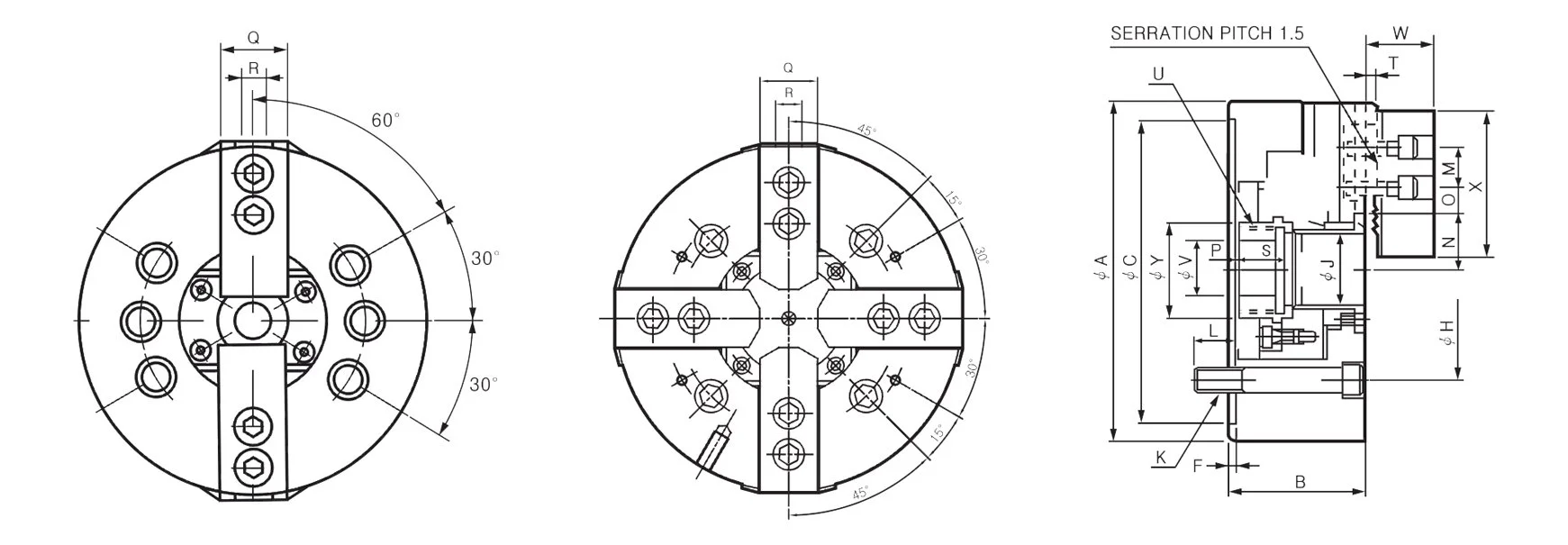

2. Two/Four-jaw chuck:
The two-jaw chuck is characterized by strong clamping force, wide clamping range, higher strength and wear resistance. Meanwhile, its clamping force is stable and reliable, and it has a unique sealing structure and high-quality seals, which makes the chuck's sealing performance better.
The four-jaw chuck is suitable for clamping non-circular workpieces, such as square or hexagonal shapes. Compared to the three-jaw chuck, the four-jaw chuck provides more stable clamping force, ensuring the machining accuracy and stability of workpieces.
|
Model |
Nose type |
A |
B |
C(h6) |
F |
H |
J |
K |
L |
M |
|
2K05 |
A2-4 |
135 |
60 |
110 |
4 |
82.6 |
33 |
4-M10X75 |
15 |
14 |
|
2/4K06 |
A2-5 |
169 |
81 |
140 |
5 |
104.8 |
46 |
6/4-M10X95 |
16 |
20 |
|
2/4K08 |
A2-6 |
210 |
91 |
170 |
5 |
133.4 |
52 |
6/4-M12X105 |
18 |
25 |
|
2/4K10 |
A2-8 |
254 |
100 |
220 |
5 |
171.4 |
75 |
6/4-M6X100 |
22 |
30 |
|
Model |
N (Max.) |
N (Min.) |
O (Max.) |
O (Min.) |
P (Max.) |
P (Min.) |
Q |
R |
S |
T |
U (Max.) |
W |
X |
|
2K05 |
26.2 |
23.5 |
19 |
6 |
1 |
-9 |
25 |
10 |
20 |
2 |
M40X1.5P |
31.5 |
62 |
|
2/4K06 |
32 |
29.25 |
22.75 |
9.25 |
11 |
-1 |
31 |
12 |
19 |
2 |
M55X2 |
37.5 |
73 |
|
2/4K08 |
38.7 |
35 |
30 |
15 |
14.5 |
-1.5 |
35 |
14 |
20.5 |
2 |
M60X2 |
39 |
95 |
|
2/4K10 |
51 |
46.6 |
34 |
14.5 |
8.5 |
-10.5 |
40 |
16 |
25 |
2 |
M85X2 |
43 |
110 |
|
Model |
Grip Dia. |
Jaw stroke |
Plunger stroke |
Max. pull force(KN) |
Max. gripping force(KN) |
Max. speed(rpm) |
Weight(kg) |
|
2K05 |
10-135 |
5.4 |
10 |
1120 |
2340 |
7000 |
6.5 |
|
2/4K06 |
15-169 |
5.5 |
12 |
1420/1630 |
3370/4180 |
6000/4500 |
13.1 |
|
2/4K08 |
14-210 |
7.4 |
16 |
2240/2240 |
5710/6010 |
5000/3600 |
21.3 |
|
2/4K10 |
31-254 |
8.8 |
19 |
2850/3160 |
7440/8050 |
4200/3200 |
33.5 |
3. Collet:
Spring collet chuck is suitable for clamping small-sized workpieces or for rapid clamping requirements. They usually feature automatic opening and closing functions, offering easy operation, although the clamping force may not be as strong as other chuck types.
|
Model |
D1 |
M |
L |
D2 |
a |
Round |
Hexagon |
Square |
|
CK28 |
Φ40 |
M34X2.0 |
100 |
Φ50 |
15° |
Φ3-28 |
H3-21 |
S3-17 |
|
CK36 |
Φ56 |
M44X2.0 |
102 |
Φ64 |
15° |
Φ3-40 |
H3-34 |
S3-27 |
|
CK46 |
Φ65 |
M55X2.0 |
103 |
Φ74 |
15° |
Φ3-48 |
H3-40 |
S3-32 |
|
CK52 |
Φ70 |
M60X2.0 |
105 |
Φ79 |
15° |
Φ3-54 |
H3-46 |
S3-37 |
|
CK65 |
Φ85 |
M75X2.0 |
120 |
Φ99 |
15° |
Φ3-70 |
H3-62 |
S3-50 |
|
CK75 |
Φ95 |
M85X2.0 |
110 |
Φ109 |
15° |
Φ3-80 |
H3-68 |
S3-55 |
These types of chucks cater to different machining needs and provide varying levels of clamping force, precision, and convenience. When selecting a chuck for an CNC lathe, factors such as the shape and size of the workpiece, machining requirements, and desired machining efficiency should be taken into consideration to ensure optimal performance.
Indeed, to meet different machining requirements, SMARTLATHE offers customization of various types of CNC lathe chucks. Feel free to inquire on our official website for more information.
