Types and Characteristics of Vertical Machining Center (VMC) Tool Holders
1. VMC Tool Holder
A VMC tool holder is a critical device used in VMC for securing and clamping tools. Its primary function is to firmly fix the tool to the spindle during machining, ensuring the concentricity and rigidity between the tool and the spindle. This is essential for maintaining machining accuracy and stability.
2. Types of VMC Tool Holders
ER Collet Tool Holder
This tool holder uses an ER spring collet to clamp the tool, making it widely applicable for drilling, reaming, and light cutting operations. It offers moderate clamping force and flexibility.
Shrink Fit Tool Holder
The shrink fit tool holder utilizes thermal expansion. The holder is heated to expand, the tool is inserted, and as the holder cools, it contracts and tightly clamps the tool. It is suitable for high-speed and high-precision cutting but depends on specialized heating and cooling equipment.
Hydraulic Tool Holder
This tool holder uses hydraulic oil pressure to clamp the tool, providing uniform clamping force. It is ideal for scenarios requiring low vibration and high precision.
Powerful Tool Holder
This tool holder employs a mechanical clamping mechanism to provide high clamping force. It is suitable for heavy-duty and high-efficiency machining processes, offering robust rigidity but slightly less precision compared to other high-accuracy clamping methods.
3. Advantages and Disadvantages of VMC Tool Holders

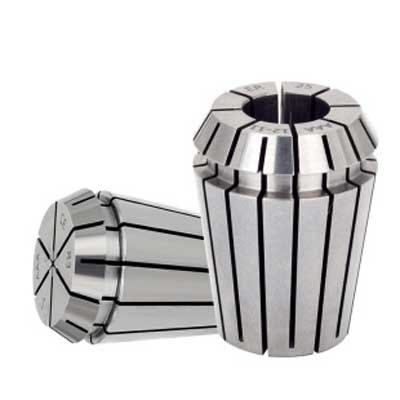

ER Collet Tool Holder
Advantages: High compatibility, easy tool changes, suitable for various tool diameters.
Disadvantages: Relatively low clamping force and rigidity, making it unsuitable for heavy cutting or high-precision machining.
Shrink Fit Tool Holder
Advantages: High clamping force and concentricity, ideal for high-speed, high-precision cutting.
Disadvantages: Requires specialized heating and cooling equipment, slower tool changes.
Hydraulic Tool Holder
Advantages: Uniform clamping force, easy tool changes, and high precision.
Disadvantages: Slightly lower clamping force than shrink fit holders, suitable for medium-load machining.

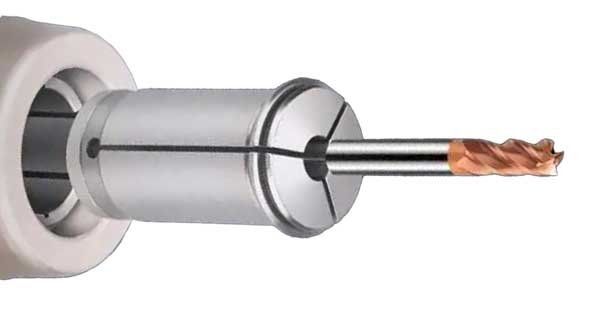

Powerful Tool Holder
Advantages: High rigidity and clamping force, ideal for heavy-load machining.
Disadvantages: Relatively lower precision, not suitable for high-precision machining.
4. Choosing the Right VMC Tool Holder
Machining Accuracy
For high-precision machining: Prioritize shrink fit tool holders.
For general accuracy: ER collet and BT tool holders are suitable.
Cutting Load
For heavy cutting: Use power clamp and shrink fit tool holders.
For light cutting and drilling/tapping: ER collet tool holders are sufficient.
Machining Speed
For high-speed machining: Opt for shrink fit tool holders.
For low to medium speeds: BT or CAT tool holders are viable options.
Cost and Efficiency
Hydraulic and ER collet tool holders offer high efficiency and are suitable for frequent tool changes.
5. Recommendation
Based on specific machining requirements, it is advisable to select the appropriate type of tool holder, machine model, and machining plan. This customization enhances production efficiency and machining precision. Smartlathe provides tailored solutions to help users select the most suitable tool holder type, thereby optimizing machining quality and efficiency to meet various process demands.
